535 – Bar-pattern handwheel in PA FG with zinc plated steel hub

Anodized alluminium self adhesive central cover to be applied after mounting

Colour	Black
Unit of measurement	Millimeters

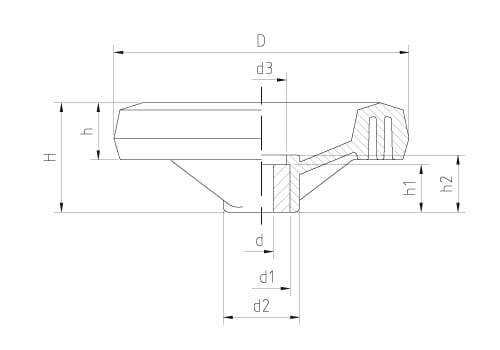

wdt_ID	Codice	Ø D	d	d1	d2	d3	H	h	h1	h2
1	535001LNVFM4	126	10	22	32	21	46	24	20	25
2	535002LNVFM4	126	12	22	32	21	46	24	20	25
3	535003LNVFM4	126	14	22	32	21	46	24	20	25
4	535004LNVFM4	160	10	25	34	29	47	25	26	31
5	535005LNVFM4	160	12	26	34	29	47	25	25	31
6	535006LNVFM4	160	14	25	34	29	47	25	26	31
7	535007LNVFM4	160	16	25	34	29	47	25	26	31
8	535008LNVFM4	200	10	30	50	28	60	28	32	34
9	535009LNVFM4	200	16	30	50	28	60	28	32	34
10	535010LNVFM4	200	20	30	50	28	60	28	32	34
