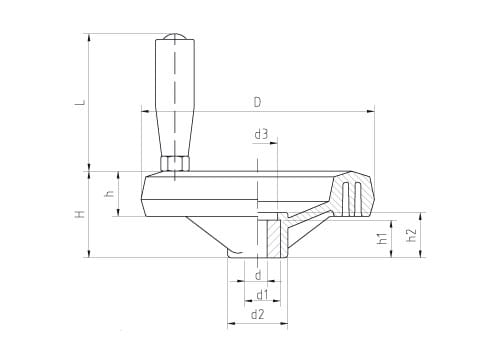

536 – Bar-pattern handwheel in PA FG with fixed handle and zinc plated steel hub

Anodized alluminium self adhesive central cover to be applied after mounting
Folding snap handle on request

Colour	Black
Unit of measurement	Millimeters

wdt_ID	Codice	Ø D	d	d1	d2	d3	H	h	h1	h2	L
1	536001LNVFM4	126	10	22	32	21	46	24	20	25	82
2	536002LNVFM4	126	12	22	32	21	46	24	20	25	82
3	536003LNVFM4	126	14	22	32	21	46	24	20	25	82
4	536004LNVFM4	160	10	25	34	29	47	25	26	31	82
5	536005LNVFM4	160	12	25	34	29	47	25	26	31	82
6	536006LNVFM4	160	14	25	34	29	47	25	26	31	82
7	536007LNVFM4	160	16	25	34	29	47	25	26	31	82
8	536008LNVFM4	200	10	30	50	28	60	28	32	34	107
9	536009LNVFM4	200	16	30	50	28	60	28	32	34	107
10	536010LNVFM4	200	20	30	50	28	60	28	32	34	107
	Codice	Ø D	d	d1	d2	d3	H	h	h1	h2	L
