609 – Threaded square ribbed in PA with iron insert

For all internal tips, the head size refers to the external dimension of the tube.

Colour	Black
Unit of measurement	Millimeters

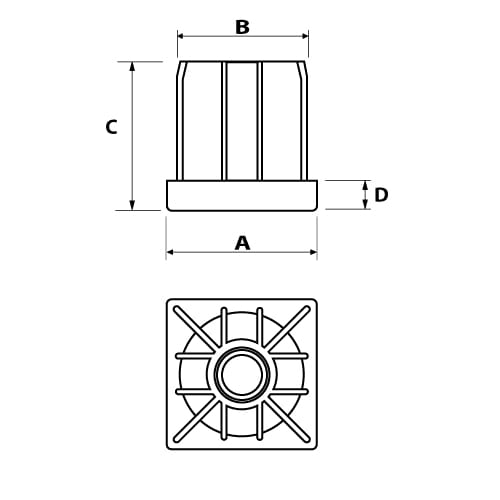

wdt_ID	Code	Head	Tube thickness mm.	Thread	A	B	C	D
1	609501INPQIF3	25X25	1,5	M 8	25	22	25	6,0
2	609502INPQIF3	25X25	1,5	M10	25	22	25	6,0
3	609503INPQIF3	25X25	2,0	M 8	25	21	25	6,0
4	609504INPQIF3	25X25	2,0	M10	25	21	25	6,0
5	609505INPQIF3	30x30	1,5	M 8	30	27	30	6,0
6	609506INPQIF3	30x30	1,5	M10	30	27	30	6,0
7	609507INPQIF3	30x30	2,0	M 8	30	26	30	6,0
8	609508INPQIF3	30x30	2,0	M10	30	26	30	6,0
9	609509INPQIF3	40x40	1,5	M 8	40	37	37	7,5
10	609510INPQIF3	40x40	1,5	M10	40	37	37	7,5
	Code	Head	Tube thickness mm.	Thread	A	B	C	D
